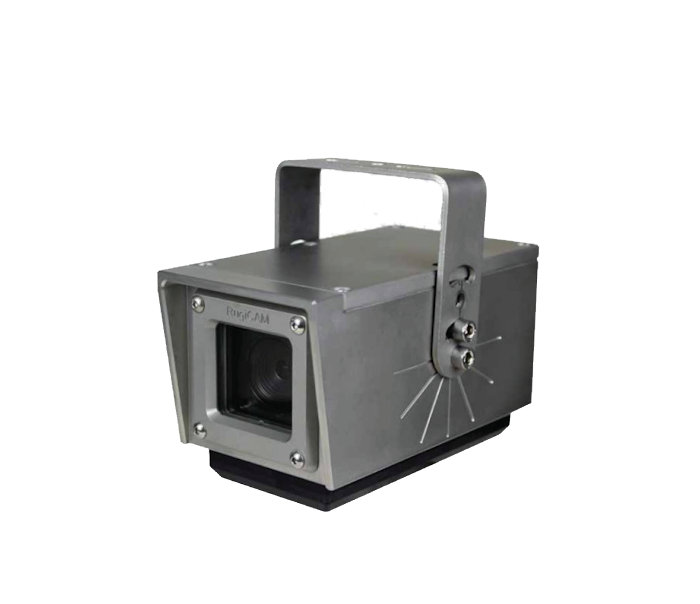

The RugiCAM-IP Mk3 high definition (HD) IS Ethernet network camera enable plant managers across process industries worldwide to ensure they are operating safely in hazardous zone 1 and zone 2 areas.
It connects directly to compatible IS Ethernet Systems via a Wired LAN cable or NEW UPGRADED Dual-Band Wi-Fi.
The small, rugged and cost effective design makes it ideal for use in numerous Petrochem and Mining applications.
The CSL RugiCAM-IP Mk3 is an improved version of the popular earlier models. It feature Full HD 1080P resolution and supports video streaming via the H.264 or H.265 compression standards and/or Motion JPEG with fram rate selectable to reduce network bandwidth.
The Mk3 version also features an enhanced low-light image sensor with wide dynamic range ideal for underground use. The WiFi antenna is integrated into a “puck” design on the bottom of the enclosure, improving on the rugged design.
- Intrinsically Safe ATEX / UKEX / IECEx / QLD Certification.
- Ex ia I Ma (M1 mining).
- Ex ia IIB T3 Ga; Ex ia IIIC T135°C Da (non-mining).
- Ta = – 2 0ºC to +60ºC.
- Full-HD Resolution 1920×1080, others selectable (independent main + sub-streams).
- 1/2.8” SONY STARVIS 2® Latest SONY CMOS 2.9μm High Sensitivity, Backlit, Active Pixel Starlight Sensor with Wide Dynamic Range perfect for standard and low-light operation.
- Configuration by any standard web browser (e.g. Chrome, Edge, Firefox etc…) Replaces the outdated and now unsupported Microsoft IE Internet Explorer and Active-X.
- Backup and Restore of Configuration Settings to a handy PC File.
- Internal Microphone fitted as standard (for audio streaming of surrounding background noise –e.g. Motors/Conveyors etc.)
- Mega-Pixel 4mm f1.6 IR HD Lens (with IR-Cut switchable).
- RTSP Stream with H.264, H.265, H.265+, MJPEG Compression formats, with Adjustable Frame Rate –
- Allows Full Control of Network Bandwidth Usage (25/30fps max).
- 10/100 Intrinsically Safe (IS) Ethernet LAN Interface supports up to 100m Cat5/6/7 Connection (with PoEx).
- • Dual Band Wi-Fi supporting 2.4 / 5GHz 802.11 a/b/g/n standards at up to 150Mbps – with integral omni-directional antenna ‘Puck’ design.
- LED indication (on rear) – Power / LAN / Wi-Fi
- 12VDC IS Power Supply Input or PoEx® (Power over IS Ethernet) allows single cable operation.
- Rugged IP65/66 rated 316 Stainless Steel Enclosure suitable for harsh environments (ideal for underground mining).
- Compact dimensions W:87 x H:95 x D:165mm (with Wi-Fi) W:87 x H:79 x D:165mm (without Wi-Fi Puck).
- Plug & Socket Connections- shortens installation and maintenance time.
IS Camera Options Available
| Part Number | Description |
| 9459-ETMK3-CSL | CSL RugiCAM-IP MK3 Camera (M12) |
| 9459-ETMK3-SKK | CSL RugiCAM-IP MK3 Camera (SKK) |
