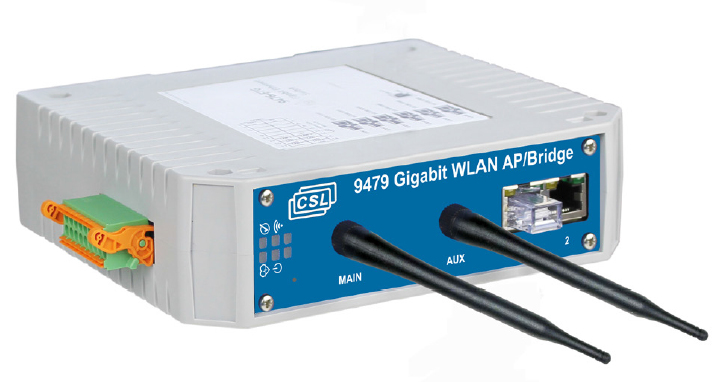

Intrinsically Safe 9479-ET(G) Gigabit Ethernet WLAN AP / Bridge
The 9479-ET(G) is an Intrinsically Safe (IS) WLAN AP/Bridge Module suitable for Zone 1 / Zone 21 mounting, (Zone 0 / Zone 20 with suitable Power Supply).
It may be configure as either an Access Point or Client/Bridge. Also supporting 2.4GHz or 5GHz operation further extends its range of applications.
The 2x RJ45 (LAN) ports support 10/100/1000 IS Ethernet connections. these can allow ‘daisy chaining‘ of units together.
Features:
- Intrinsically Safe ATEX / IECEx Certification
- Dual Band 2.4Ghz / 5GHz WLAN Support
- Access Point (AP) Mode
- or Client/Bridge Mode
- Dual Port Switch 10/100/1000Mbps LAN
- Compact dimensions (W: 42 x H: 160 x D: 140 mm)
- Ex ia IIB T4 Ga; [Ex ia Da] IIIC T135° Db (non-mining), Ex ia I Ma (M1 mining)
- Ta = -40°C to +70°C
- Ta = -40°C to +70°C
- 12V IS Power supply locally
- Zone 1 / Zone 21 DIN rail mounting module
