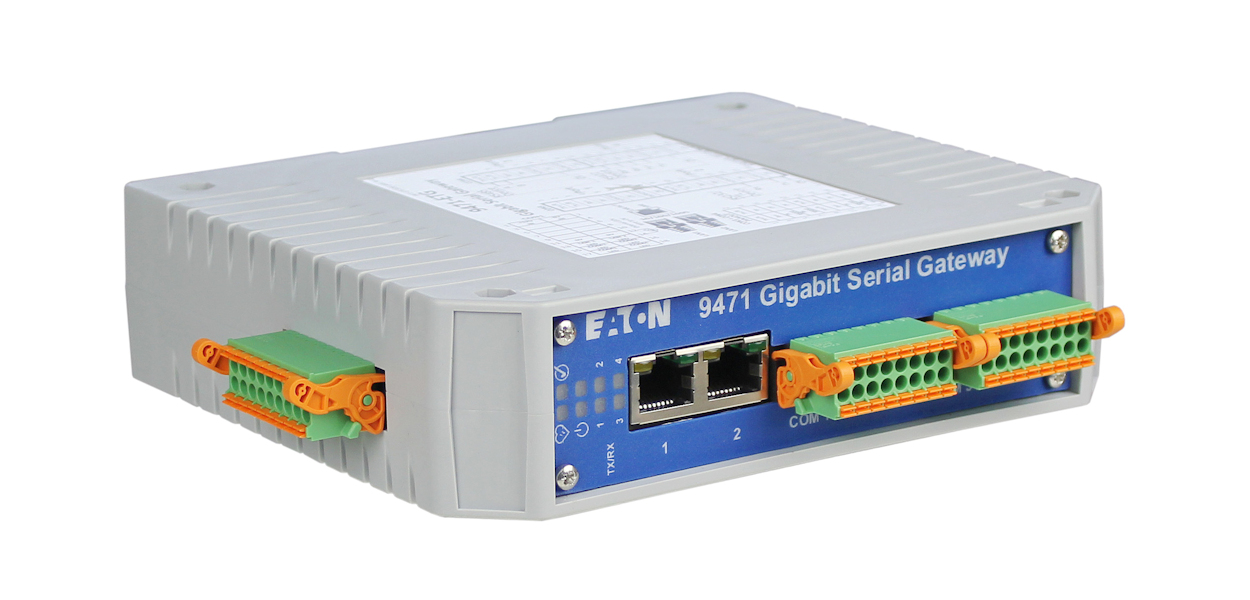

Intrinsically Safe Gigabit Ethernet 4 Port Gateway
The CSL 9471-ET(G) is an Intrinsically Safe (IS) Ethernet to Serial 4 Port Communication Module suitable for Zone 1 / Zone 21 mounting.
The module allows existing Intrinsically Safe Equipment with an RS485/RS422 or RS232/TTL port to become Ethernet Enabled via the two IS Gigabit Ethernet ports that support 10/100/1000 speeds,
Features:
- Intrinsically Safe ATEX / IECEx Certification
- 4 Communication Ports – RS232/TTL/485/422 (2 & 4 Wire)
- Serial Modbus Protocol
- Dual Port Switch 10/100/1000Mbps LAN (daisy chain capability)
- Modbus/TCP <-> Modbus/RTU (or ASCII) Protocol
- Compact dimensions (W: 42 x H: 160 x D: 140 mm)
- Ex ia IIB T4 Ga; [Ex ia Da] IIIC (non-mining), Ex ia I Ma (M1 mining)
- Ta = -40°C to +70°C
- 12V IS Power supply locally or using Power over Ethernet (PoEx)
- Zone 1 / Zone 21 DIN rail mounting module
